D'ttach Mfg.
UNIVERSAL TELESCOPIC CROSSBAR HITCH KIT APPLICABLE IF YOUR MACHINE DOES NOT HAVE A CROSS-MEMBER BAR TO CLAMP HITCH ONTO AND THERE IS NOT AN EXACT FIT HITCH FOR YOUR MACHINE.

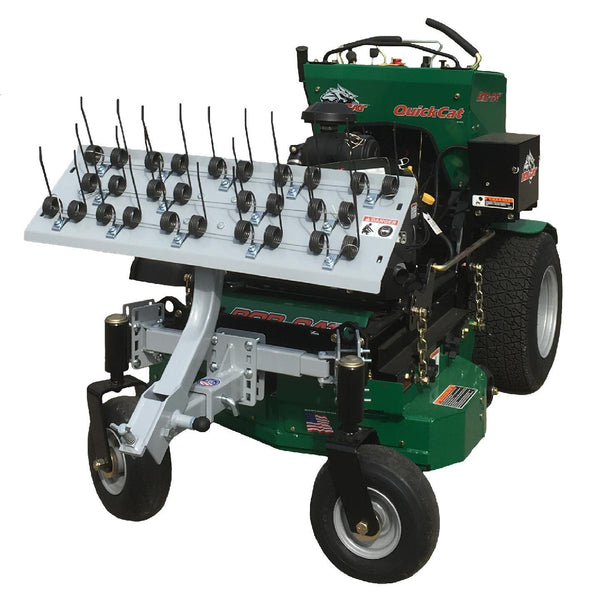

SMALL KIT INCLUDES TELESCOPIC CROSS BAR (20"-26" SPAN), "UNI" CASTER WHEEL ARM BRACKETS, 2" D'TTACH FRONT MOUNT HITCH ASSEMBLY, MOUNTING HARDWARE & HITCH PIN.

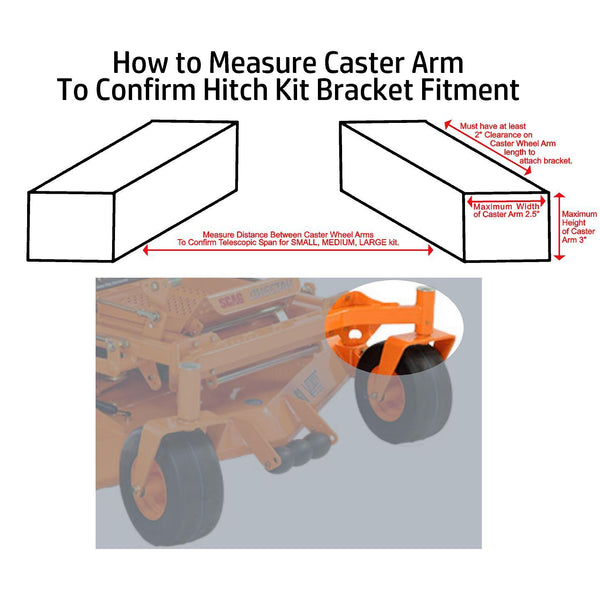

Please measure the distance between your mowers caster wheel arms. This kit Spans 20"- 26", there is a Medium Kit and Large Kit for different sized mowers.
Our patent pending telescopic hitch bar DTHSM-UNI expands across caster wheel arms from 20" to 26". Brackets require at least 2" clearance on caster arm length to attach mounting bracket. Brackets are adjustable to accommodate caster arms with a maximum of 2.5" width and 3" height. There is NO drilling into your mower for installation of this hitch. If your machine does not meet these requirements, please contact us directly for additional assistance.

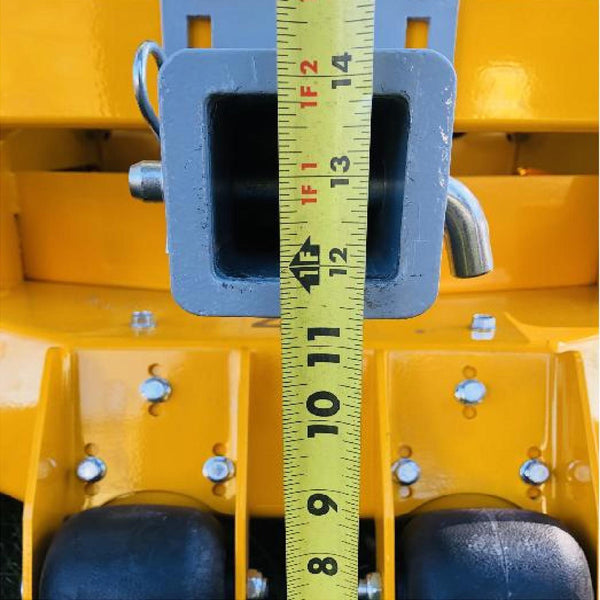

D'ttach Front Mount Hitch System...One, easy to install hitch turns your commercial mower into a multi-tasking machine! Once the hitch is installed, you can now use all D'ttach Commercial Mower Attachments, Kart Mate zero turn mower attachment cart and even use your mower to move trailers around your work yard! The possibilities are endless! For optimal results using D'ttach Commercial Mower Attachments, center of hitch should be 13" from ground to center of hitch tube. Drop hitch adapter and hitch extension are available if height or caster wheel clearance problems occur.
Shipping Weight: 22lbs
All D'ttach Commercial Mower Attachments and Products are Proudly Made in the USA!
